Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12
6 - 2

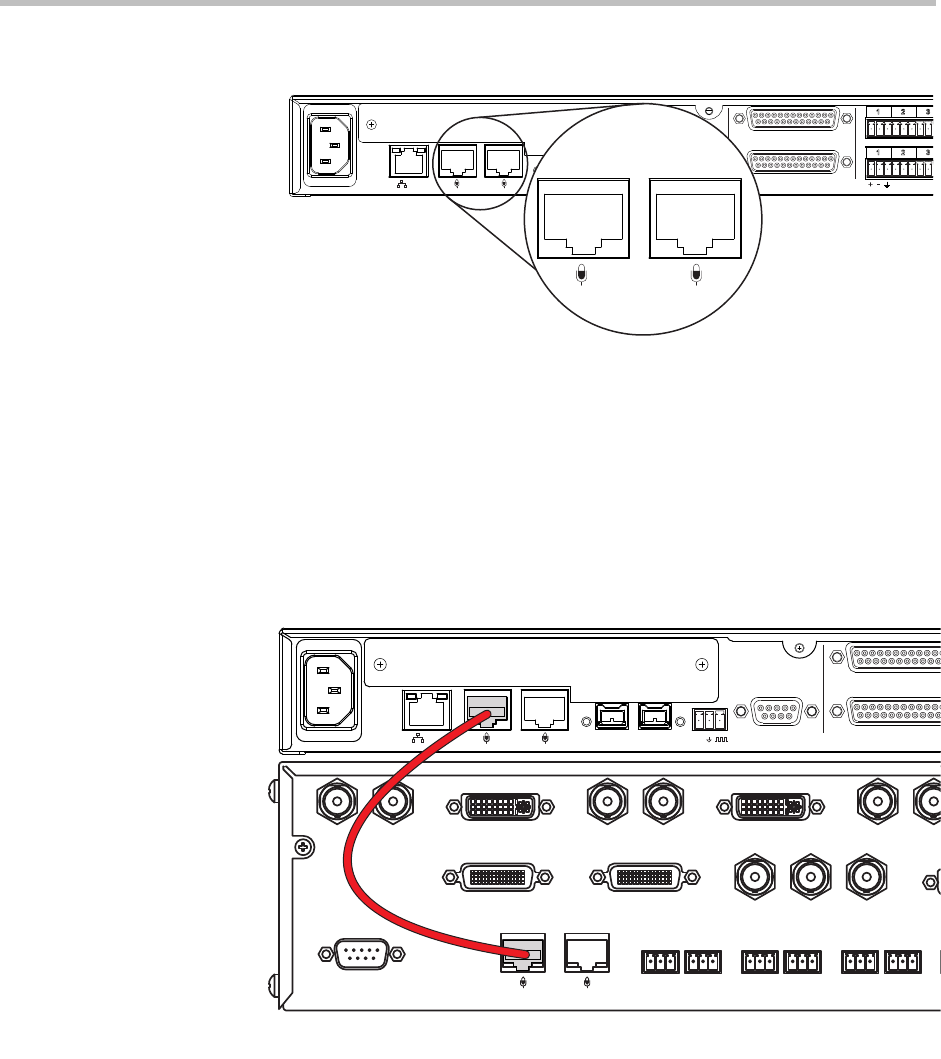

The rear-panel of the SoundStructure product with the Conference Link2 con-
nections highlighted is shown in the following figure.
Polycom HDX Integration
The SoundStructure devices may be connected to the Polycom HDX video
conferencing system using the supplied Conference Link2 cable as shown in
the next figure. Either Conference Link2 port on the SoundStructure device or
the Polycom HDX system may be used. The Polycom HDX system requires
firmware release 2.0.1 or higher firmware to be compatible with SoundStruc-
ture devices.
