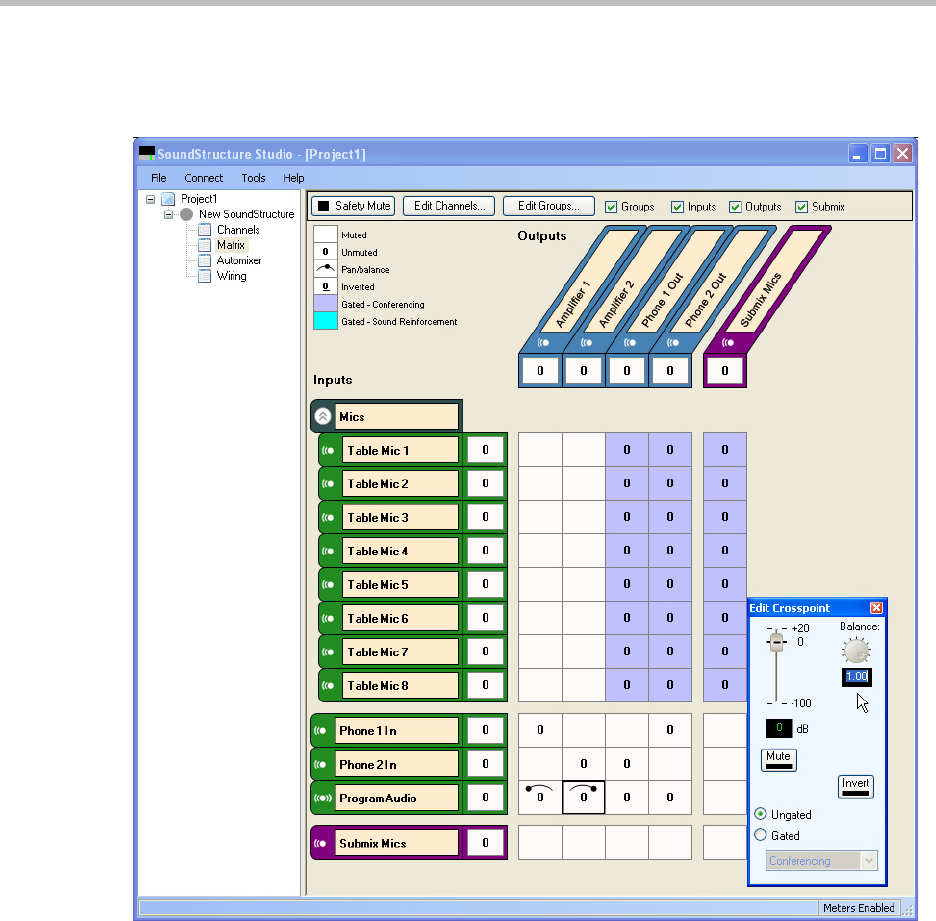

amplifier outputs can be adjusted with the balance control as shown in the fol-
lowing figure. The program audio is balanced to the left to “Amplifier 1” and
to the right to “Amplifier 2”.
