SoundStructure Product Family
2 - 5
SoundStructure C-series Products

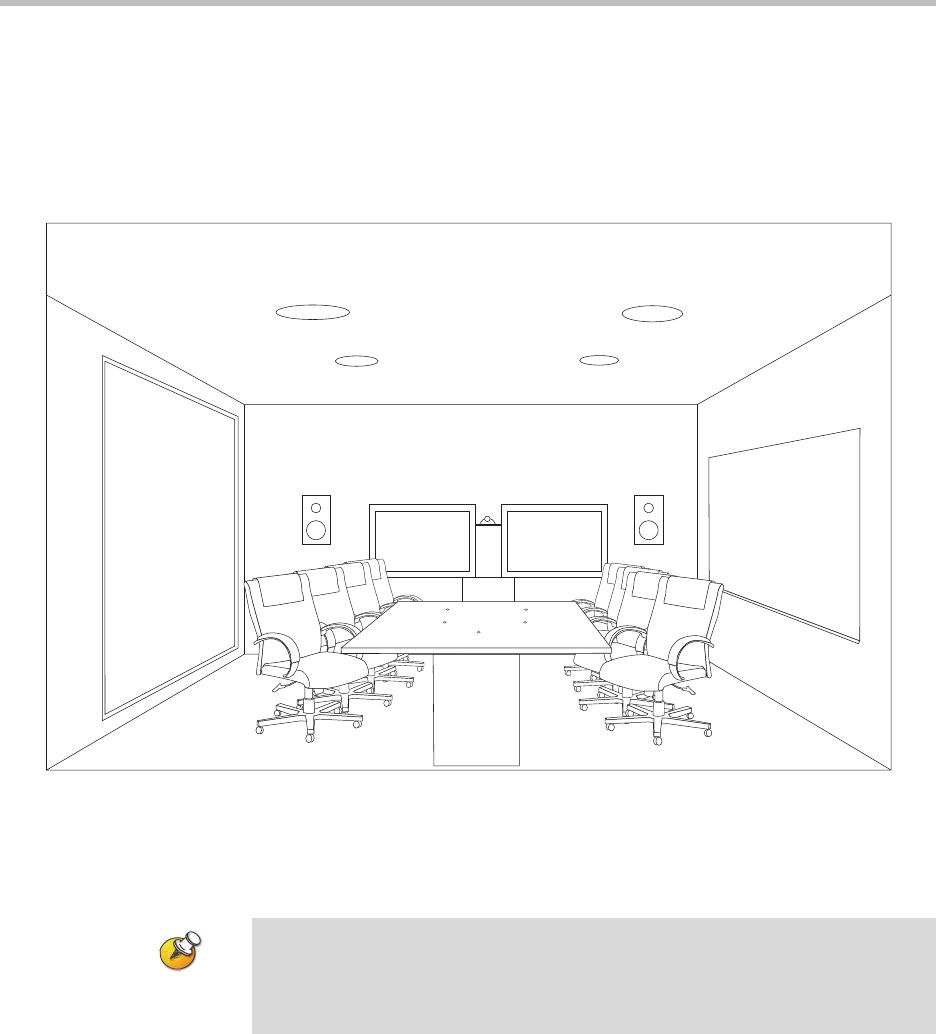

The SoundStructure C16, C12, and C8 devices are designed for audio
conferencing applications where groups of people want to communicate to
other individuals or groups such as in a typical room shown in the following
figure.
The SoundStructure C-series products feature both monaural and stereo
acoustic echo cancellation, noise cancellation, equalization, dynamics
processing, feedback elimination, automatic microphone mixing, and more.
A single SoundStructure C16, C12, or C8 device supports 16, 12, or 8
microphone or line inputs and 16, 12, or 8 line outputs, respectively. Up to
eight SoundStructure devices may be linked together (any combination of
SoundStructure C-series or SR-series products may be used together) to build
audio processing systems that support up to one hundred twenty-eight analog
inputs and analog outputs.
All audio inputs have the same processing capability and can be used with either
microphone-level or line-level inputs. Phantom power is available on all inputs.
All outputs have the same processing capability.
