Advanced Applications
9 - 21
SoundStructure Studio Steps

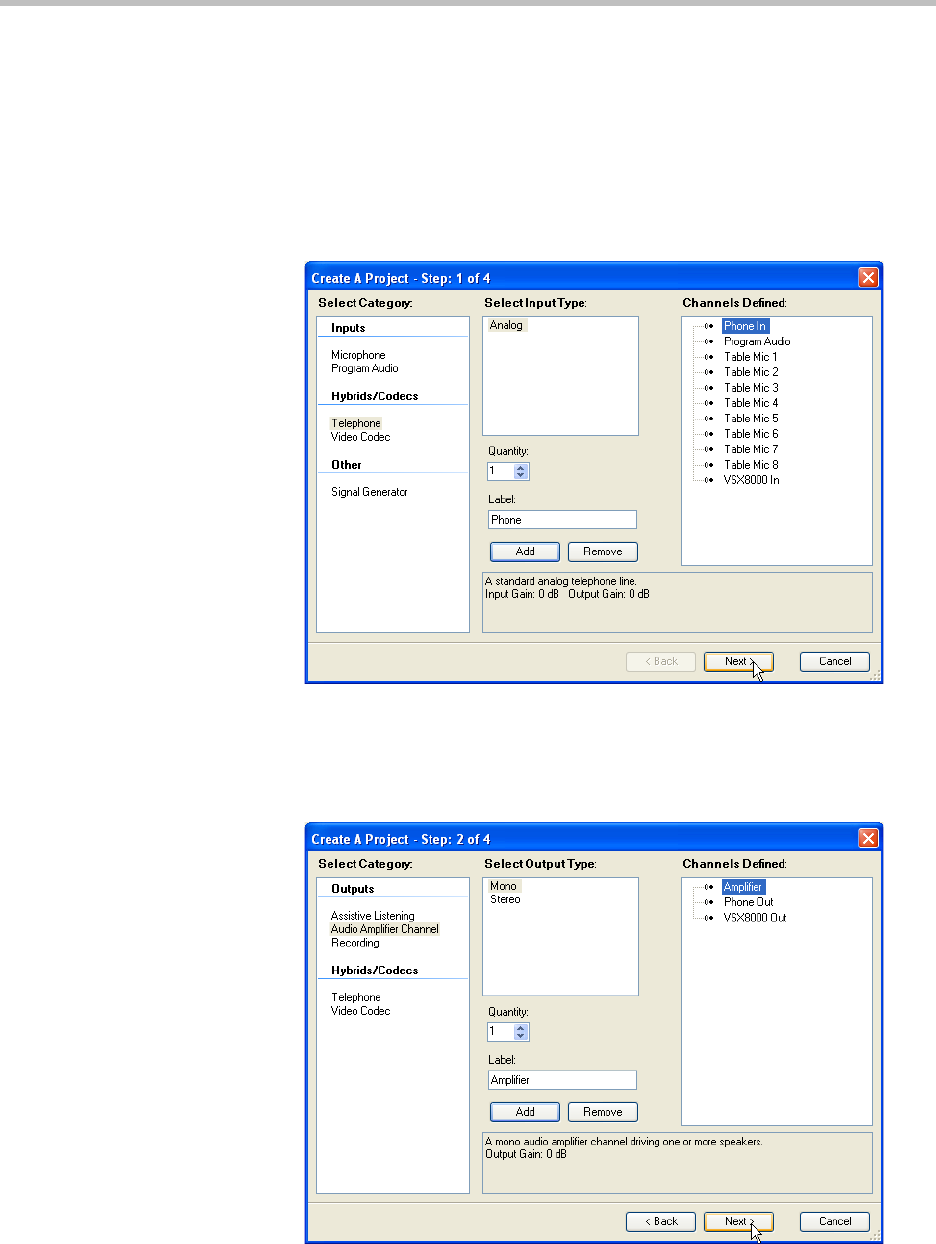

The steps to create this project are shown in the following figures. The names
for the channels are the names that SoundStructure Studio defines.
Step 1 - Select Inputs
Select eight table microphones, a mono program audio source, a VSX8000
mono video codec, and a telephone interface.
Step 2 - Select Outputs
Select a mono amplifier as the output source. The telephone and VSX8000 out-
puts are automatically defined when their respective inputs are selected.
